Heavy Duty Pallet Racking
Product ID: A-22-HD
IMPA Code: -
Category | Type:
Racking |
Heavy Duty
Brand: SKB
Key Benefits:
-
•
100% direct access to every pallet
-
•
Fast loading & unloading operations
-
•
Compatible with most forklift types
-
•
Flexible beam levels and configurations
-
•
Expandable system for future growth
-
•
Cost-effective warehouse investment
-
•
Supply, Installation & After Sales Support

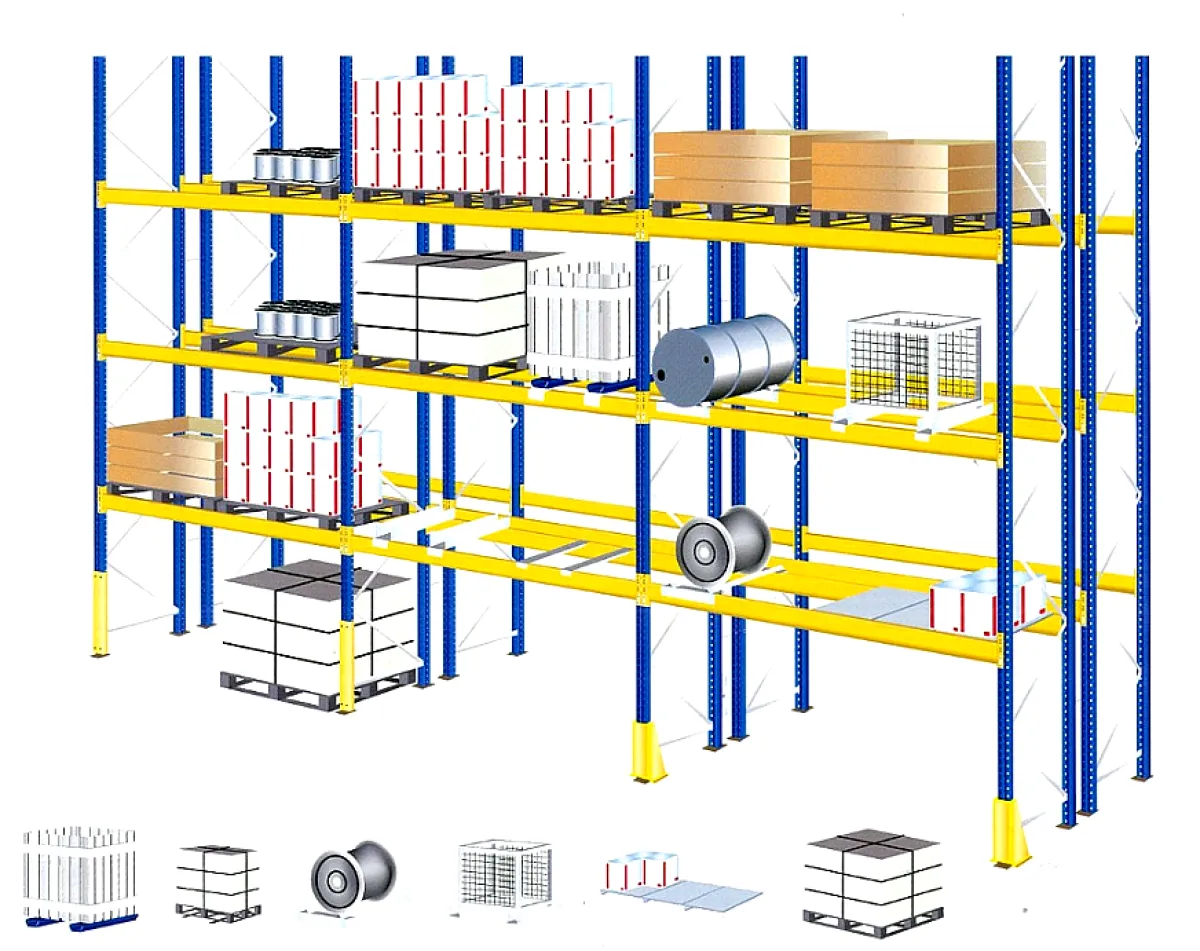

One of the most widely used system for storing palletized unit loads is selective pallet racking. Within the rack each pallet is individually accessible.
Height Options
| FT | MM |
| 6 | 1800 |
| 8 | 2400 |
| 10 | 3000 |
| 12 | 3600 |
| 14 | 4200 |
| 16 | 4800 |
| 18 | 5400 |
Depth Options:
| FT | MM |
| 1.5 | 450 |
| 2 | 610 |
| 25 | 750 |
| 3 | 900 |
| 4 | 1220 |
Length / Width & Load Options:

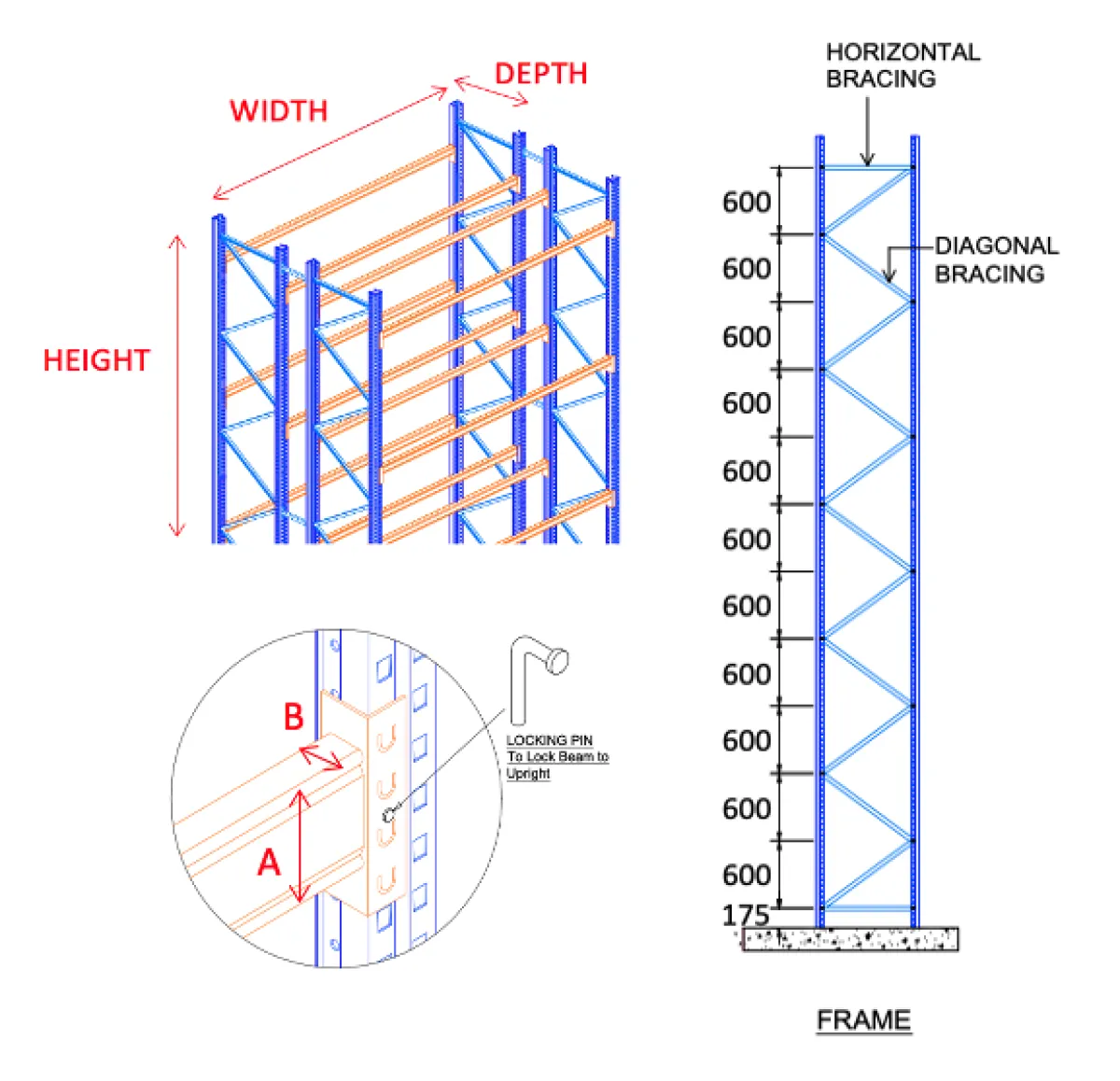

| Length (FT) | Length (MM) | A (MM) | B (MM) | LOAD |
| 6 | 1850 | 95 | 45 | 2T |
| 8 | 2450 | 95 | 45 | 2T |
| 9 | 2700 | 95 | 45 | 2T |
| 9 | 2700 | 105 | 45 | 2.2T |
| 8 | 2450 | 125 | 45 | 3T |
| 9 | 2700 | 125 | 45 | 3T |
Design Features
Upright profiles are made of high tensile steel and very rigid, and bolted to form the stable frame using horizontal and diagonal struts with 50:50 perforations.
Large Footplates ensure even distribution of load to floor.
Upright lug pitch 50:50 adjustable.
Longitudinal beams welded with 4-hook clips. Guarantee a positive connection to the uprights.
Box Beams come in 2T, 2.2T and 3T loading capacity per level to cater for different requirements.
Supplied with locking pin to prevent the beam from being lifted out accidentally.
