UNOIQ
Product ID: unoiq
IMPA Code:
Category | Type:
Gas Protection |
Gas Detector
Brand: CROWCON
Key Benefits:
-
•
Plug & play (auto detect) sensor capability
-
•
Upgradeable from single to dual gas
-
•
Swappable, pre-calibrated sensor trays
-
•
Bluetooth and NFC connectivity

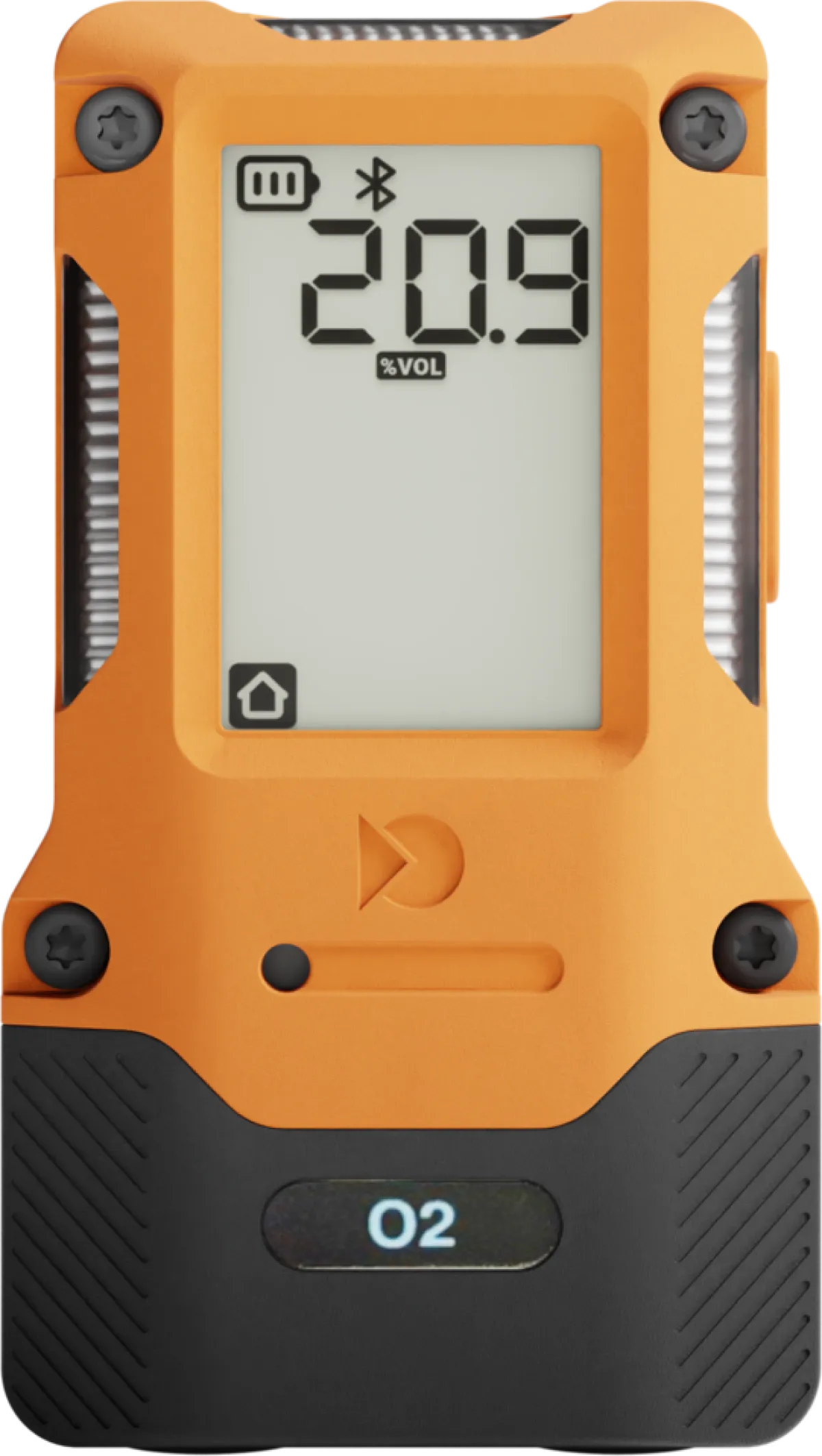

A single-gas detector with industry-leading battery life, modular sensors, and seamless connectivity for enhanced safety.
| Size | STANDARD: 96 x 55 x 32 MM DEEP TRAY: 106 x 55 x 32 MM |
| Weight | 135g (Weight may vary depending on configuration) |
| Response Time (T90) | <10s (sensor dependent) |
| Alarms | Visual, vibrating, audible (95dB at 10cm), low/high, TWA, STEL |
| Display | Backlit segment display |
| Data Logging | Up to 500 event logs |
| Power & Battery | Toxics and O2: 65 days continuous, (6 months at 8-hour shifts) IR: 33 days (3 months at 8-hour shifts) MPSTM: 20 days (2 months at 8-hour shifts) Pellistor: 24 hours continuous Recharge time < 4 hours |
| Sampling | None |
| Operating Temperature Range | -20 to +55°C (-4 to +131°F) |
| Humidity | 0-95% RH |
| Ingress protection | IP66 & IP68 |
| Approvals*** | CSA US: Class I, Division 1, Groups A, B, C, D T4 ATEX: Ex II 1G Ex ia IIC T4 Ga IECEx: Ex ia da IIC T4 Ga INMETRO: Ex ia IIC T4 Ga RED/FCC/IC: Wireless |
| Calibration & Maintenance | Automatic bump test (<10 seconds) and calibrations (<30 seconds) through IQhub; Manual bump and calibrations through device and PC software |
| Accessories | Power cable (device to USB-A & USB-C); Flowplate; IQhub |
| Connectivity | NFC & Bluetooth® (optional) required for connection to Crowcon Connect App for live data and configuration |
| Crowcon Connect | Cloud-hosted web application for safety monitoring and asset management, offering real-time alarms, compliance dashboards, location tracking, device configurations, and essential reporting |
| Sensors | Electrochemical, IR, MPSTM, Pellistor, PID and Long life O2 |
| Languages | English |
| Warranty | 2 years (sensor warranty separate / manufacturer defect) |
UnoIQ is a rugged, reliable and compact single-gas detector, built to perform even in the toughest environments. With an industry-leading rechargeable battery, modular sensor technology, and seamless connectivity to Crowcon Connect via Bluetooth®, UnoIQ simplifies asset management while maximising safety and compliance.
