Spiroscape EEBD
Product ID: A-02-0001
IMPA Code: 330438
Category | Type:
Gas Protection |
EEBD
Brand: INTERSPIRO
Key Benefits:
-
•
Safe and Automatic Transition to Ambient Air
-
•
Long Service Life
-
•
Optimized Air Usage with Patented System
-
•
Easy and Reliable Operation in Emergencies
-
•
Comfortable and Reusable for Training

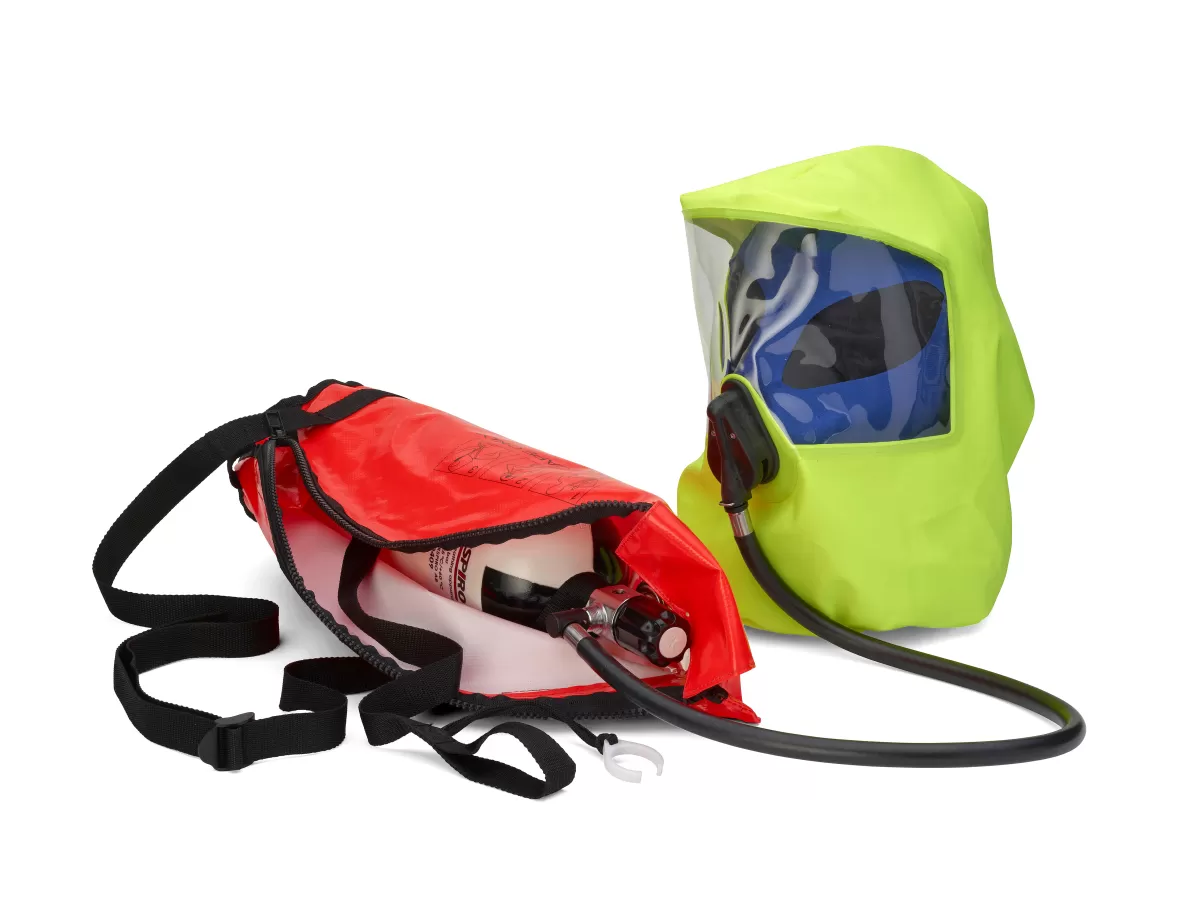

The Spiroscape EEBD is an open-circuit emergency escape breathing device that uses compressed air, and is certified with both CE and MED approvals.
| Feature | Description |
| Escape Duration | 15 minutes |

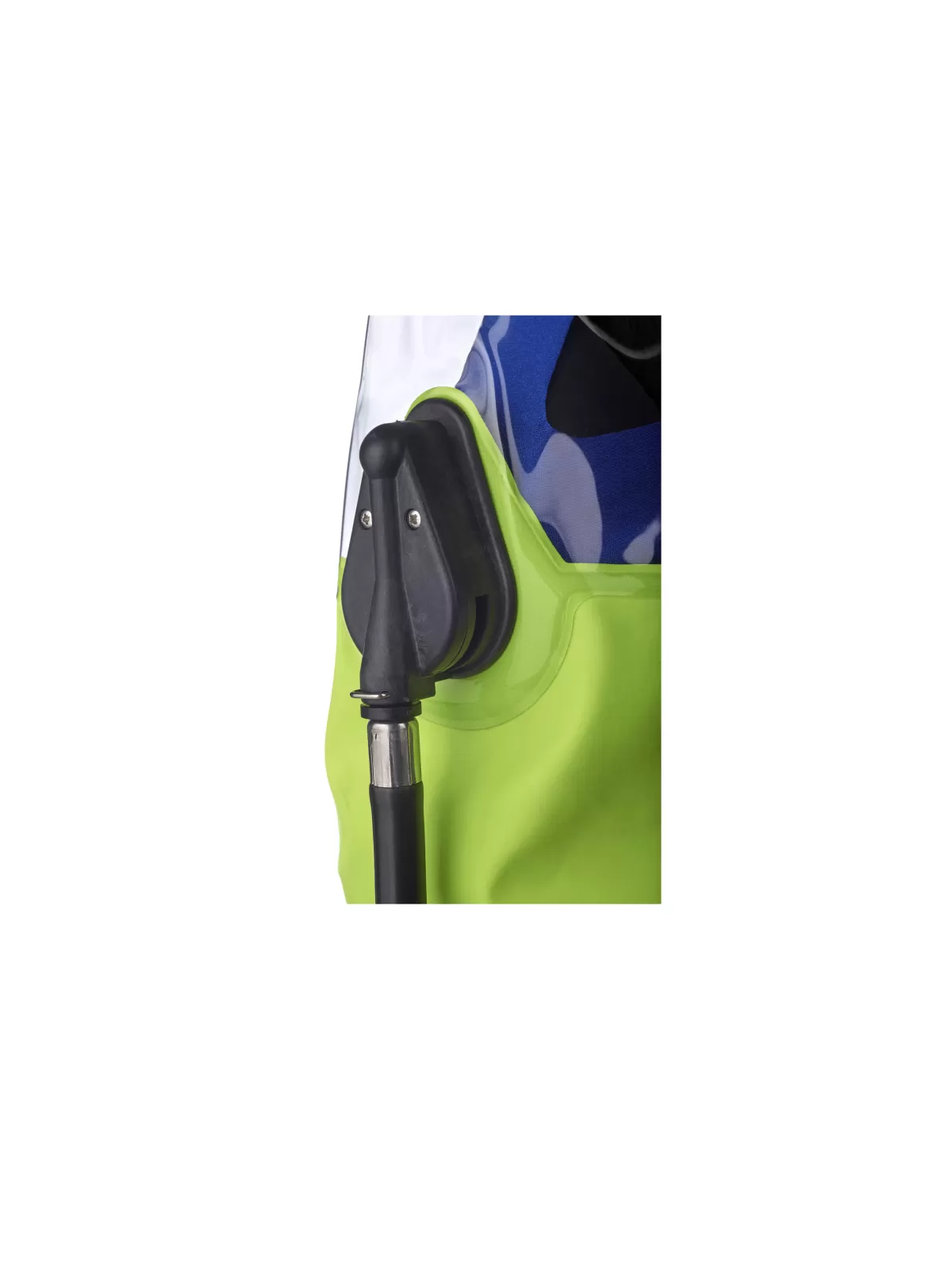

| Hood Design | Two-layered with inner mask and clear field of view |
| Neck Seal | Very flexible, ensures effective sealing and comfort |
| Air Delivery | Quiet system allows voice communication |
| Activation | Pull-tab for instant airflow and automatic bag opening |
| CO₂ Removal | Patented air distribution system |
| Ambient Air Valve | Automatically opens when cylinder is empty to prevent suffocation |
| Cylinder Options |
|

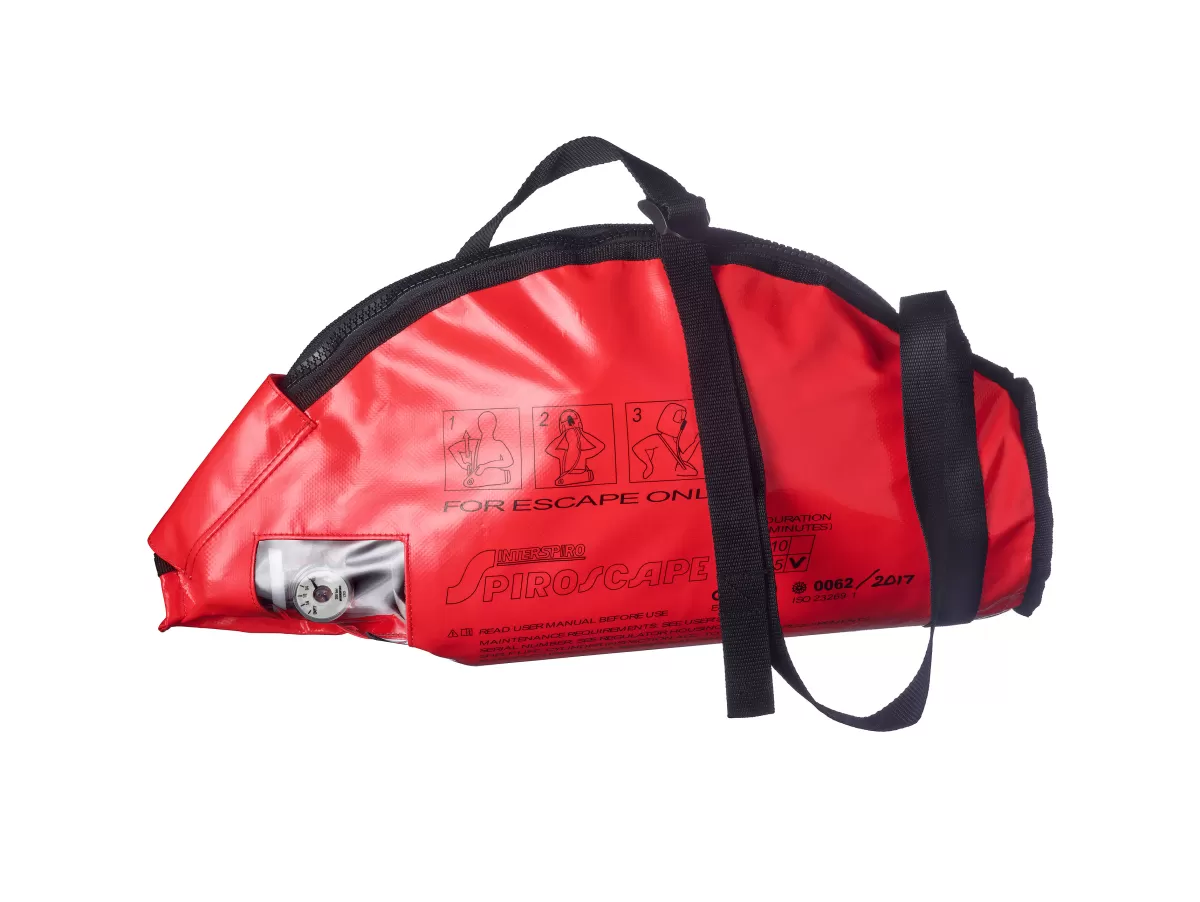

| Carrying Bag | Includes anti-tamper seal, external pressure gauge window, and shoulder strap |
| Weight Approx. | 4.8kg (empty steel cylinder) |
| Dimensions | 500 x 230 x 130 mm |
| Material | Hood - Coated PVC, Bag - PVC coated polyamide |
| Standards | EN1146, ISO 23269-1 |
| Approvals | PPE Regulation (EU) 2016/425, 2014/90/EU Marine Equipment |
